JIB Cranes in Chennai

Macroverse designs and manufactures jib cranes for precise, localized material handling in industrial workspaces. Choose the right lifting solution for your workspace, load requirements, and production needs.
Home
>
Cranes
>
EOT Cranes
motorised jib crane manufacturer india

JIB Cranes

Macroverse designs and manufactures jib cranes for machine shops, assembly lines, maintenance bays, foundries and warehouses. Jib crane, jeep crane and cantilever crane are three names for the same machine: a horizontal arm that rotates around a column or wall mounting and carries a hoist over one work area.
‍
Each crane is built to your capacity, arm length, rotation angle and mounting point, then fitted with an electric chain hoist, wire rope hoist, manual pulley block or vacuum lifter. We supply, install and service them from Chennai, Bengaluru and Hyderabad.

Request a Quote

Product Description

A jib crane serves one station instead of a whole bay. The arm swings the load from a machine to a bench, a pallet or a vehicle, and the operator guides it by hand or from a pendant. Where an EOT crane would be oversized for a single cell, a rotating arm puts a hoist exactly where the lifting happens and keeps the main crane free for heavier work.
‍
We make four types: column-mounted units for floor-standing, self-supported installs; wall-mounted units for plants that cannot spare floor space; articulated units for cells with columns and machines in the way; and motorised units for repetitive lifting where manual slewing tires operators. Arms are tapered I-beam or box section, designed to IS / FEM duty classes and sized to keep deflection low under rated load.

Technical Specification
Capacity Up to 5 Tons
Arm Length Up to 6 m, customised to the work area
Rotation 180°–360° (column mounted and motorised); 180°–270° (wall mounted and articulated)
Types Column Mounted / Wall Mounted / Articulated / Motorised
Arm Design Tapered I-beam or box section
Hoist Options Electric Chain Hoist / Wire Rope Hoist / Manual Pulley Block / Vacuum Lifter
Slewing Manual or Motorised
Control Hand-guided / Pendant / Radio Remote (motorised)
Duty Class IS / FEM
Installation Complete Installation & Commissioning
AMC Preventive & Breakdown Maintenance
Industries Aerospace, Automotive, Engineering, Marine, Paper & Pulp, Power, Steel, Warehousing

Built on Trust. Proven by Experience.

Every successful project reflects our commitment to quality, precision, and customer satisfaction. Here's what our clients have shared about working with us.

RK
Rajesh Kumar

Production Manager

AP
Anand Prakash

Operations Head

SV
S. Venkatesh

Procurement Manager

P
Mr.Rajeshkumar

Coimbatore

MS
Mahesh Sharma

Plant Manager

PN
Priya Nair

Purchase Manager

RK
Rajesh Kumar

Production Manager

Request a Quote
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Industries We Serve

Our cranes work in plants across these sectors. Reference sites are available on request.

Automotive Component Manufacturing
Dies, fixtures, gearbox housings and axle parts move between machines and inspection benches on one crane per cell, without tying up an overhead crane.
General Manufacturing and Assembly
A crane next to each machine or bench handles tooling, castings and finished parts, so operators stop lifting by hand.
Marine and Shipyards
Outfitting shops and pipe and engine workshops use these cranes for valves, pump casings and machined parts that need exact placement.
Paper and Pulp
Rolls, core shafts, bearings and spare parts get handled at maintenance stations around the machine hall, often with a motorised arm and chain hoist.
Power and Energy
Turbine auxiliaries, motors and valve assemblies are serviced in maintenance bays where a wall or column mounted crane replaces temporary rigging.
Steel and Metal Fabrication
CNC loading, welding positioners and press tending are common station jobs, with motorised models used where cycles repeat all shift.
Foundries and Forges
Motorised units serve moulding, fettling and forge lines where the same lift repeats hundreds of times a day.
Warehousing and Logistics
Loading bays and packing stations use these cranes to move heavy cartons, drums and machine parts from dock to floor.
Large factory with automated assembly line producing car frames under a yellow Macroverse crane.Two workers in helmets guiding a large container suspended by a Macroverse crane in an industrial plant.Worker in safety helmet watches a large steel beam lifted by a yellow overhead crane in a factory.Workers wearing helmets watch a large turbine rotor being lifted by a yellow crane inside a power plant.Four workers in safety gear guide a heavy machine part suspended by chains from a yellow overhead crane.Workers in helmets guide a large metal tank suspended by a yellow overhead crane in an industrial plant.Workers in safety gear operate crane and forklift lifting a large wrapped industrial item in a warehouse.Large yellow crane labeled Macroverse lifting a ship section at a shipyard with workers watching.

Types We Manufacture

Four types cover most workstation layouts. Capacity, arm length and rotation are set against your station at enquiry.

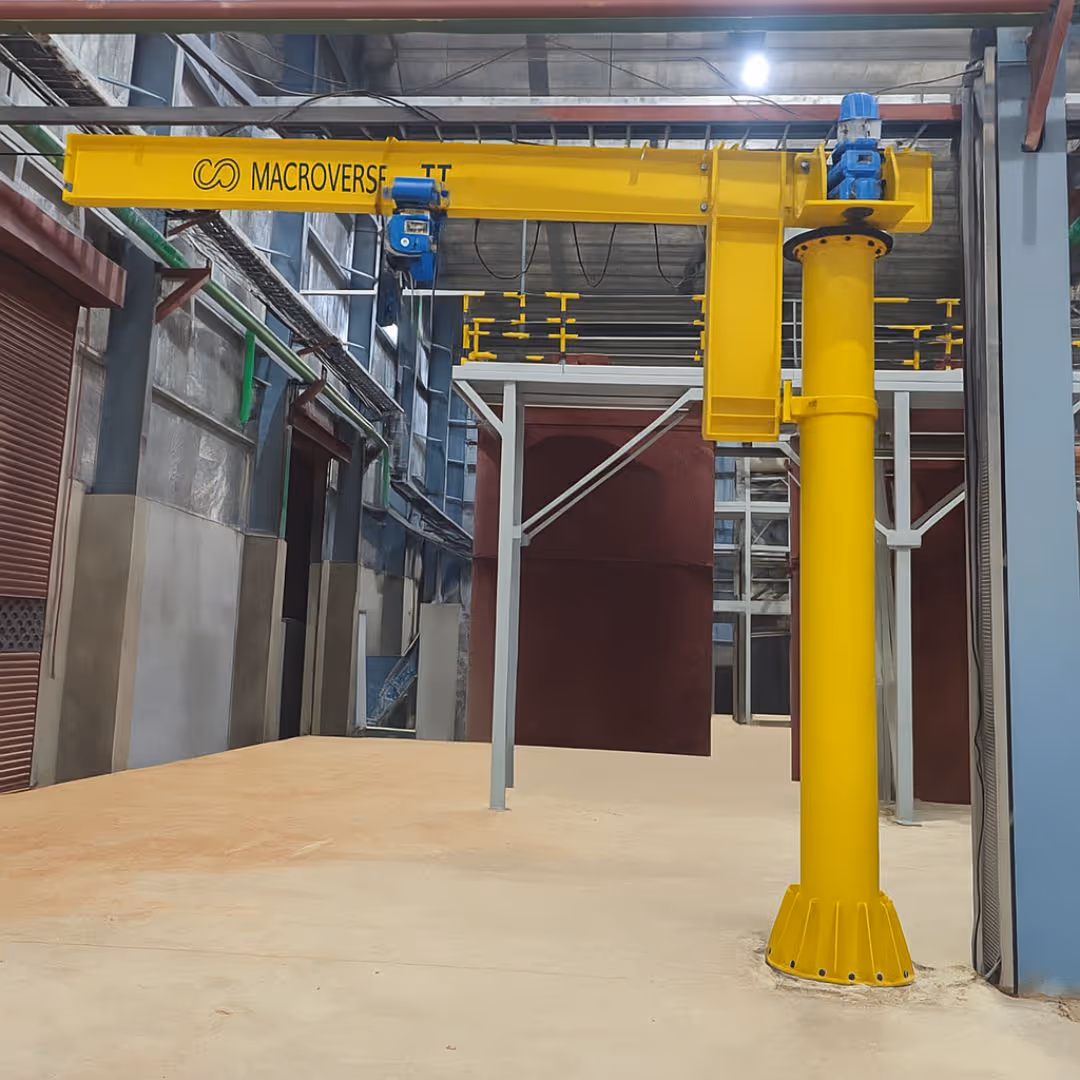

Column Mounted Cranes for Workstations

Best Suited for:
Assembly bays • Heavy component handling • Machine shops • Indoor and outdoor stations
A column mounted crane stands on its own base plate and foundation. It does not load the building, so it works in sheds where columns and walls cannot take the extra bending force, and it can be installed outdoors with protective coatings. Choose it for the widest sweep, the highest capacity in the range, or a station away from any wall.

Technical Specification

Capacity
Up to 5T
Arm Length
Up to 30 metres
Rotation
180° – 360°
A black hoist with chain and hook for lifting heavy objects.
Mounting
Floor-mounted, self-supported on base plate and foundationFloor-mounted, self-supported on base plate and foundation
Black airplane icon inside a circle representing travel or flight.
Arm Design
Tapered I-beam or box section for low deflection
A black hoist with chain and hook for lifting heavy objects.
Hoisting
Electric wire rope hoist, chain hoist or manual pulley block
Music player controls icons: play, pause, skip forward, skip backward, repeat, shuffle, volume, and playlist.
Slewing
Manual or motorised, on bearing arrangement
Music player controls icons: play, pause, skip forward, skip backward, repeat, shuffle, volume, and playlist.
Duty Class
IS / FEM, moderate to heavy duty

Wall Mounted Cranes for Space-Saving Operations

Best Suited For:
Production lines • Maintenance bays • Small workshops • Warehousing
A wall mounted crane bolts to a building column or reinforced wall and leaves the floor clear. It suits workbenches, machine rows and loading edges, where a floor-standing column would block forklifts or walkways. The wall or column must carry the bending moment at rated capacity, so we ask for the structure details at enquiry and confirm whether it needs reinforcing.
wall mounted jib crane manufacturer india

Technical specification

Capacity
Up to 3T
Arm Length
Up to 6 m, adapted to the building structure
Rotation
180° – 270°, depending on clearance
A black hoist with chain and hook for lifting heavy objects.
Mounting
Fixed to structural columns or reinforced walls
Black airplane icon inside a circle representing travel or flight.
Floor Footprint
Zero
A black hoist with chain and hook for lifting heavy objects.
Hoisting
Electric or manual hoists
Music player controls icons: play, pause, skip forward, skip backward, repeat, shuffle, volume, and playlist.
Slewing
Manual or motorised, low-maintenance pivot connections
Music player controls icons: play, pause, skip forward, skip backward, repeat, shuffle, volume, and playlist.
Duty Class
IS / FEM based on usage

Articulated Cranes for Flexible Load Positioning

Best Suited For:
CNC machine loading • Electronics assembly • Confined work cells • Areas with columns or obstructions
An articulated crane has two arm sections joined at a knuckle. The load can be folded around a column, a machine guard or a corner and placed where a straight arm cannot reach. Precision bearing joints keep the movement smooth by hand. It suits lighter loads in tight cells; above 1 T, a column mounted or wall mounted crane is the better fit.

Technical Specification

Capacity
Up to 1T
Arm Length
Up to 30 metres
Rotation
180° – 270°, depending on layout and mounting

A black hoist with chain and hook for lifting heavy objects.
Mounting
Column mounted or wall mounted
A black hoist with chain and hook for lifting heavy objects.
Hoisting
Electric chain hoist or manual options
A black hoist with chain and hook for lifting heavy objects.
Joints
Precision bearings for smooth, hand-guided movement
Music player controls icons: play, pause, skip forward, skip backward, repeat, shuffle, volume, and playlist.
Slewing
Manual or motorised, on bearing arrangement
Music player controls icons: play, pause, skip forward, skip backward, repeat, shuffle, volume, and playlist.
Obstruction Bypass
Works around columns, machinery and walls

Motorised Cranes for Repetitive Heavy Lifting

Best Suited For:
High-throughput lines • Foundries and forges • Heavy machinery maintenance • Repetitive lifting zones
On a motorised crane, both the hoist and the arm rotation are powered. The operator moves a heavy load through a full swing from a pendant or radio remote, without pushing the arm by hand. Smooth acceleration and deceleration reduce load swing. Choose it when the load is heavy, the arm is long, or the lift repeats often enough that manual slewing slows the line.
motorised jib crane manufacturer india

Technical specification

Capacity
Up to 5T
Arm Length
Up to 6 m, customised to operating zone
Rotation
180° – 360°, powered by electric drive
A black hoist with chain and hook for lifting heavy objects.
Hoisting
Electric wire rope hoist, chain hoist or manual pulley block
Black airplane icon inside a circle representing travel or flight.
Controls
Zero
Music player controls icons: play, pause, skip forward, skip backward, repeat, shuffle, volume, and playlist.
Motion
Smooth acceleration and deceleration, reduced load swing
Music player controls icons: play, pause, skip forward, skip backward, repeat, shuffle, volume, and playlist.
Duty Class
IS / FEM, for continuous operation
A black hoist with chain and hook for lifting heavy objects.
Mounting
Floor-mounted or wall-mounted

Safety, Controls and Durability

Diagram of a VFD-controlled motor system showing components like source, controller, and motor.

Controlled Slewing

Smooth rotation under load.

Bearing-supported manual or motorised slewing keeps the arm moving steadily, so the load does not drift or jerk when the operator guides it into position.

Powered Motion

Less load swing on repeat lifts.

On motorised models, smooth acceleration and deceleration of rotation and hoisting limit swing and make stopping at the exact point easier.

Icon of two cars facing each other with a dashed line between them, symbolizing anti-collision.

Pendant and Radio Remote

Operate from a safe position.

Pendant control comes standard on powered hoists, and wireless radio remote is available on motorised cranes so the operator can stand clear of the load path.

Various black mechanical components including gears, screws, springs, and shafts on white background.

IS/FEM Duty Class

Sized for your lifting cycle.

The arm, bearings and hoist are selected for how often and how heavy you lift, not for a catalogue rating.

Rigid Arm Design

Low deflection at full load.

Tapered I-beam or box-section arms hold the hoist level along the full reach, which keeps trolley travel smooth and positioning accurate.

Corrosion-Resistant Finish

Built for shop-floor and outdoor stations.

Protective coatings are available for column mounted cranes installed outdoors or in damp and dusty areas.

What Makes Macroverse Different

As a jib crane manufacturer with teams across South India, here is what sets our engineering and after-sales support apart.
eot crane manufacturer
eot crane manufacturer

Sized to Your Station

We set capacity, arm length and rotation angle against the real reach, clearances and workflow at your workstation, not a fixed catalogue model.

Mounting Matched to Your Building

We check whether your floor, column or wall can carry the crane, then recommend a foundation-mounted column type or a wall mounted arm to suit.

Hoist Fitted to the Job

Chain hoist, wire rope hoist, pulley block or vacuum lifter is chosen by load, lift height and lifts per hour, and supplied with the crane. See our electric chain hoists and electric wire rope hoists.

Manual or Motorised Rotation

You choose hand-guided slewing for light, occasional lifts or powered rotation for heavy and repeat work, on the same arm design

Service Teams in Chennai, Bengaluru & Hyderabad

Breakdown calls and site visits run from our own South India teams, not a subcontractor.

Complete After-Sales Support with Spares & AMC

We supply genuine crane spare parts for the mechanical, electrical and structural systems on every crane, backed by AMC contracts covering scheduled inspection and priority breakdown response.

Installation, AMC and Spare Parts Support

A station crane works every shift at the same spot, so its bearings, hoist and slewing joint wear faster than the size of the crane suggests. We handle installation and commissioning, including base plate and foundation details for column mounted units and fixing details for wall mounted units.

Our AMC covers scheduled inspection, lubrication of slewing bearings and wear-part checks, with priority response when a station stops. Hoist parts, brakes, limit switches, pendants and slewing components are available as genuine spares, so a worn part does not mean a stopped workstation.

Explore Our Services
Two workers on blue lift inspecting a yellow overhead crane inside a large industrial warehouse.
Frequently Asked Questions
1. What is a jib crane used for?
2. Is a jeep crane or cantilever crane different from a jib crane?
3. What capacity and arm length do your jib cranes support?
4. What is the difference between a column mounted and a wall mounted unit?
5. When should I choose a motorised model?
6. Which hoist can I fit on the arm?
7. Can the crane be installed outdoors?
8. Does the crane need a foundation?
9. Should I use a workstation crane or an EOT crane?
10. What should I share to get a quotation?
Get Expert Guidance for JIB Crane Systems & Hoists
Send us your station dimensions and load. Our engineers will recommend the type, arm length and hoist.
